Kompakt Şalterler – BMA2 Serisi MCCB

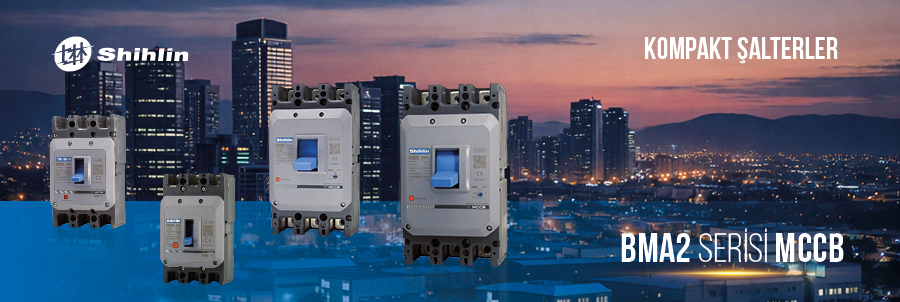

BMA2 Serisi – Kompakt Şalter (MCCB)

BMA2 serisi kompakt şalterler (devre kesicileri) 50/60 Hz, 690VAC’a kadar ve 10~630 A arasında değişen nominal değerlerde AC devrelerde çalışabilir.
Nominal akımları güvenle taşıyarak, devreleri ve elektrikli ekipmanları aşırı yük, kısa devreye karşı güvenilir bir şekilde koruma ve açma-kapatma sağlarlar.
Düşük gerilim bobini aksesuarı ile birlikte düşük gerilime karşı koruma sağlarlar.
Ayrıca motorlar için seyrek çalıştırmalar dahil, aşırı yük ve kısa devreye karşı da koruma sağlarlar.
Bu kesiciler, çeşitli sektörlerdeki dağıtım panolarında yaygın olarak kullanılmaktadır.
Aksesuarlar: AL(alarm kontak), AX(yardımcı kontak), ALAX(alarm+ yardımcı kontak), SHT(açtırma-bobini), UVT(düşük voltaj bobini), MA(kurma kolu), MT(motor mekanizma), TC(yalıtım bariyeri), FHL(manuel kilitleme ünitesi).
CE belgelidir, IEC 60947-2 standardı ile uyumludur.

MCCB - Sabit Akım Tipli 3 Kutup
Sipariş Kodu	Model	Anma Akımı (A)	Ayar Aralığı Ir (A)	Anma Kesme Kapasitesi lcu / Ics 400VAC	Kutup Sayısı
OBMA2125LTD3P80TR	BMA2 125L TD	80	SABİT	36/36kA	3
OBMA2125LTD3P100TR	BMA2 125L TD	100	SABİT	36/36kA	3
OBMA2125LTD3P125TR	BMA2 125L TD	125	SABİT	36/36kA	3
OBMA2160LTD3P140TR	BMA2 160L TD	140	SABİT	36/36kA	3
OBMA2160LTD3P160TR	BMA2 160L TD	160	SABİT	36/36kA	3
OBMA2250LTD3P180TR	BMA2 250L TD	180	SABİT	36/36kA	3
OBMA2250LTD3P200TR	BMA2 250L TD	200	SABİT	36/36kA	3
OBMA2250LTD3P225TR	BMA2 250L TD	225	SABİT	36/36kA	3
OBMA2250LTD3P250TR	BMA2 250L TD	250	SABİT	36/36kA	3
OBMA2400LTD3P300TR	BMA2 400L TD	300	SABİT	36/36kA	3
OBMA2400LTD3P320TR	BMA2 400L TD	320	SABİT	36/36kA	3
OBMA2400LTD3P350TR	BMA2 400L TD	350	SABİT	36/36kA	3
OBMA2400LTD3P400TR	BMA2 400L TD	400	SABİT	36/36kA	3
OBMA2630LTD3P500TR	BMA2 630L TD	500	SABİT	36/36kA	3
OBMA2630LTD3P630TR	BMA2 630L TD	630	SABİT	36/36kA	3

OBMA2125HTD3P80TR	BMA2 125H TD	80	SABİT	50/50kA	3
OBMA2125HTD3P100TR	BMA2 125H TD	100	SABİT	50/50kA	3
OBMA2125HTD3P125TR	BMA2 125H TD	125	SABİT	50/50kA	3
OBMA2160HTD3P140TR	BMA2 160H TD	140	SABİT	50/50kA	3
OBMA2160HTD3P160TR	BMA2 160H TD	160	SABİT	50/50kA	3
OBMA2250HTD3P180TR	BMA2 250H TD	180	SABİT	50/50kA	3
OBMA2250HTD3P200TR	BMA2 250H TD	200	SABİT	50/50kA	3
OBMA2250HTD3P225TR	BMA2 250H TD	225	SABİT	50/50kA	3
OBMA2250HTD3P250TR	BMA2 250H TD	250	SABİT	50/50kA	3
OBMA2400HTD3P300TR	BMA2 400H TD	300	SABİT	50/50kA	3
OBMA2400HTD3P320TR	BMA2 400H TD	320	SABİT	50/50kA	3
OBMA2400HTD3P350TR	BMA2 400H TD	350	SABİT	50/50kA	3
OBMA2400HTD3P400TR	BMA2 400H TD	400	SABİT	50/50kA	3
OBMA2630HTD3P500TR	BMA2 630H TD	500	SABİT	50/50kA	3
OBMA2630HTD3P630TR	BMA2 630H TD	630	SABİT	50/50kA	3

OBMA2125H2TD3P80TR	BMA2 125H2 TD	80	SABİT	70/50kA	3
OBMA2125H2TD3P100TR	BMA2 125H2 TD	100	SABİT	70/50kA	3
OBMA2125H2TD3P125TR	BMA2 125H2 TD	125	SABİT	70/50kA	3
OBMA2160H2TD3P140TR	BMA2 160H2 TD	140	SABİT	70/50kA	3
OBMA2160H2TD3P160TR	BMA2 160H2 TD	160	SABİT	70/50kA	3
OBMA2250H2TD3P180TR	BMA2 250H2 TD	180	SABİT	70/50kA	3
OBMA2250H2TD3P200TR	BMA2 250H2 TD	200	SABİT	70/50kA	3
OBMA2250H2TD3P225TR	BMA2 250H2 TD	225	SABİT	70/50kA	3
OBMA2250H2TD3P250TR	BMA2 250H2 TD	250	SABİT	70/50kA	3
OBMA2400H2TD3P300TR	BMA2 400H2 TD	300	SABİT	70/50kA	3
OBMA2400H2TD3P320TR	BMA2 400H2 TD	320	SABİT	70/50kA	3
OBMA2400H2TD3P350TR	BMA2 400H2 TD	350	SABİT	70/50kA	3
OBMA2400H2TD3P400TR	BMA2 400H2 TD	400	SABİT	70/50kA	3
OBMA2630H2TD3P500TR	BMA2 630H2 TD	500	SABİT	70/50kA	3
OBMA2630H2TD3P630TR	BMA2 630H2 TD	630	SABİT	70/50kA	3

MCCB - Sabit Akım Tipli 4 Kutup
OBMA2125LTD4P80TR	BMA2 125L TD	80	SABİT	36/36kA	4
OBMA2125LTD4P100TR	BMA2 125L TD	100	SABİT	36/36kA	4
OBMA2125LTD4P125TR	BMA2 125L TD	125	SABİT	36/36kA	4
OBMA2160LTD4P140TR	BMA2 160L TD	140	SABİT	36/36kA	4
OBMA2160LTD4P160TR	BMA2 160L TD	160	SABİT	36/36kA	4
OBMA2250LTD4P180TR	BMA2 250L TD	180	SABİT	36/36kA	4
OBMA2250LTD4P200TR	BMA2 250L TD	200	SABİT	36/36kA	4
OBMA2250LTD4P225TR	BMA2 250L TD	225	SABİT	36/36kA	4
OBMA2250LTD4P250TR	BMA2 250L TD	250	SABİT	36/36kA	4
OBMA2400LTD4P300TR	BMA2 400L TD	300	SABİT	36/36kA	4
OBMA2400LTD4P320TR	BMA2 400L TD	320	SABİT	36/36kA	4
OBMA2400LTD4P350TR	BMA2 400L TD	350	SABİT	36/36kA	4
OBMA2400LTD4P400TR	BMA2 400L TD	400	SABİT	36/36kA	4
OBMA2630LTD4P500TR	BMA2 630L TD	500	SABİT	36/36kA	4
OBMA2630LTD4P630TR	BMA2 630L TD	630	SABİT	36/36kA	4

OBMA2125HTD4P80TR	BMA2 125H TD	80	SABİT	50/50kA	4
OBMA2125HTD4P100TR	BMA2 125H TD	100	SABİT	50/50kA	4
OBMA2125HTD4P125TR	BMA2 125H TD	125	SABİT	50/50kA	4
OBMA2160HTD4P140TR	BMA2 160H TD	140	SABİT	50/50kA	4
OBMA2160HTD4P160TR	BMA2 160H TD	160	SABİT	50/50kA	4
OBMA2250HTD4P180TR	BMA2 250H TD	180	SABİT	50/50kA	4
OBMA2250HTD4P200TR	BMA2 250H TD	200	SABİT	50/50kA	4
OBMA2250HTD4P225TR	BMA2 250H TD	225	SABİT	50/50kA	4
OBMA2250HTD4P250TR	BMA2 250H TD	250	SABİT	50/50kA	4
OBMA2400HTD4P300TR	BMA2 400H TD	300	SABİT	50/50kA	4
OBMA2400HTD4P320TR	BMA2 400H TD	320	SABİT	50/50kA	4
OBMA2400HTD4P350TR	BMA2 400H TD	350	SABİT	50/50kA	4
OBMA2400HTD4P400TR	BMA2 400H TD	400	SABİT	50/50kA	4
OBMA2630HTD4P500TR	BMA2 630H TD	500	SABİT	50/50kA	4
OBMA2630HTD4P630TR	BMA2 630H TD	630	SABİT	50/50kA	4
					4
OBMA2125H2TD4P80TR	BMA2 125H2 TD	80	SABİT	70/50kA	4
OBMA2125H2TD4P100TR	BMA2 125H2 TD	100	SABİT	70/50kA	4
OBMA2125H2TD4P125TR	BMA2 125H2 TD	125	SABİT	70/50kA	4
OBMA2160H2TD4P140TR	BMA2 160H2 TD	140	SABİT	70/50kA	4
OBMA2160H2TD4P160TR	BMA2 160H2 TD	160	SABİT	70/50kA	4
OBMA2250H2TD4P180TR	BMA2 250H2 TD	180	SABİT	70/50kA	4
OBMA2250H2TD4P200TR	BMA2 250H2 TD	200	SABİT	70/50kA	4
OBMA2250H2TD4P225TR	BMA2 250H2 TD	225	SABİT	70/50kA	4
OBMA2250H2TD4P250TR	BMA2 250H2 TD	250	SABİT	70/50kA	4
OBMA2400H2TD4P300TR	BMA2 400H2 TD	300	SABİT	70/50kA	4
OBMA2400H2TD4P320TR	BMA2 400H2 TD	320	SABİT	70/50kA	4
OBMA2400H2TD4P350TR	BMA2 400H2 TD	350	SABİT	70/50kA	4
OBMA2400H2TD4P400TR	BMA2 400H2 TD	400	SABİT	70/50kA	4
OBMA2630H2TD4P500TR	BMA2 630H2 TD	500	SABİT	70/50kA	4
OBMA2630H2TD4P630TR	BMA2 630H2 TD	630	SABİT	70/50kA	4

MCCB Ayarlanabilir Tip (0.8-1 In) 3 Kutup
Sipariş Kodu	Model	Anma Akımı (A)	Ayar Aralığı Ir (A)	Anma Kesme Kapasitesi lcu / Ics 400VAC	Kutup Sayısı
OBMA2125LTA3P80TR	BMA2 125L TA	80	64 - 80	36/36kA	3
OBMA2125LTA3P100TR	BMA2 125L TA	100	80 - 100	36/36kA	3
OBMA2125LTA3P125TR	BMA2 125L TA	125	100 - 125	36/36kA	3
OBMA2160LTA3P140TR	BMA2 160L TA	140	112 - 140	36/36kA	3
OBMA2160LTA3P160TR	BMA2 160L TA	160	128 - 160	36/36kA	3
OBMA2250LTA3P180TR	BMA2 250L TA	180	144 - 180	36/36kA	3
OBMA2250LTA3P200TR	BMA2 250L TA	200	160 - 200	36/36kA	3
OBMA2250LTA3P225TR	BMA2 250L TA	225	180 - 225	36/36kA	3
OBMA2250LTA3P250TR	BMA2 250L TA	250	200 - 250	36/36kA	3
OBMA2400LTA3P300TR	BMA2 400L TA	300	240 - 300	36/36kA	3
OBMA2400LTA3P320TR	BMA2 400L TA	320	256 - 320	36/36kA	3
OBMA2400LTA3P350TR	BMA2 400L TA	350	280 - 350	36/36kA	3
OBMA2400LTA3P400TR	BMA2 400L TA	400	320 - 400	36/36kA	3
OBMA2630LTA3P500TR	BMA2 630L TA	500	400 - 500	36/36kA	3
OBMA2630LTA3P630TR	BMA2 630L TA	630	504 - 630	36/36kA	3

OBMA2125HTA3P80TR	BMA2 125H TA	80	64 - 80	50/50kA	3
OBMA2125HTA3P100TR	BMA2 125H TA	100	80 - 100	50/50kA	3
OBMA2125HTA3P125TR	BMA2 125H TA	125	100 - 125	50/50kA	3
OBMA2160HTA3P140TR	BMA2 160H TA	140	112 - 140	50/50kA	3
OBMA2160HTA3P160TR	BMA2 160H TA	160	128 - 160	50/50kA	3
OBMA2250HTA3P180TR	BMA2 250H TA	180	144 - 180	50/50kA	3
OBMA2250HTA3P200TR	BMA2 250H TA	200	160 - 200	50/50kA	3
OBMA2250HTA3P225TR	BMA2 250H TA	225	180 - 225	50/50kA	3
OBMA2250HTA3P250TR	BMA2 250H TA	250	200 - 250	50/50kA	3
OBMA2400HTA3P300TR	BMA2 400H TA	300	240 - 300	50/50kA	3
OBMA2400HTA3P320TR	BMA2 400H TA	320	256 - 320	50/50kA	3
OBMA2400HTA3P350TR	BMA2 400H TA	350	280 - 350	50/50kA	3
OBMA2400HTA3P400TR	BMA2 400H TA	400	320 - 400	50/50kA	3
OBMA2630HTA3P500TR	BMA2 630H TA	500	400 - 500	50/50kA	3
OBMA2630HTA3P630TR	BMA2 630H TA	630	504 - 630	50/50kA	3

OBMA2125H2TA3P80TR	BMA2 125H2 TA	80	64 - 80	70/50kA	3
OBMA2125H2TA3P100TR	BMA2 125H2 TA	100	80 - 100	70/50kA	3
OBMA2125H2TA3P125TR	BMA2 125H2 TA	125	100 - 125	70/50kA	3
OBMA2160H2TA3P140TR	BMA2 160H2 TA	140	112 - 140	70/50kA	3
OBMA2160H2TA3P160TR	BMA2 160H2 TA	160	128 - 160	70/50kA	3
OBMA2250H2TA3P180TR	BMA2 250H2 TA	180	144 - 180	70/50kA	3
OBMA2250H2TA3P200TR	BMA2 250H2 TA	200	160 - 200	70/50kA	3
OBMA2250H2TA3P225TR	BMA2 250H2 TA	225	180 - 225	70/50kA	3
OBMA2250H2TA3P250TR	BMA2 250H2 TA	250	200 - 250	70/50kA	3
OBMA2400H2TA3P300TR	BMA2 400H2 TA	300	240 - 300	70/50kA	3
OBMA2400H2TA3P320TR	BMA2 400H2 TA	320	256 - 320	70/50kA	3
OBMA2400H2TA3P350TR	BMA2 400H2 TA	350	280 - 350	70/50kA	3
OBMA2400H2TA3P400TR	BMA2 400H2 TA	400	320 - 400	70/50kA	3
OBMA2630H2TA3P500TR	BMA2 630H2 TA	500	400 - 500	70/50kA	3
OBMA2630H2TA3P630TR	BMA2 630H2 TA	630	504 - 630	70/50kA	3

MCCB Ayarlanabilir Tip (0.8-1 In) 4 Pole
OBMA2125LTA4P80TR	BMA2 125L TA	80	64 - 80	36/36kA	4
OBMA2125LTA4P100TR	BMA2 125L TA	100	80 - 100	36/36kA	4
OBMA2125LTA4P125TR	BMA2 125L TA	125	100 - 125	36/36kA	4
OBMA2160LTA4P140TR	BMA2 160L TA	140	112 - 140	36/36kA	4
OBMA2160LTA4P160TR	BMA2 160L TA	160	128 - 160	36/36kA	4
OBMA2250LTA4P180TR	BMA2 250L TA	180	144 - 180	36/36kA	4
OBMA2250LTA4P200TR	BMA2 250L TA	200	160 - 200	36/36kA	4
OBMA2250LTA4P225TR	BMA2 250L TA	225	180 - 225	36/36kA	4
OBMA2250LTA4P250TR	BMA2 250L TA	250	200 - 250	36/36kA	4
OBMA2400LTA4P300TR	BMA2 400L TA	300	240 - 300	36/36kA	4
OBMA2400LTA4P320TR	BMA2 400L TA	320	256 - 320	36/36kA	4
OBMA2400LTA4P350TR	BMA2 400L TA	350	280 - 350	36/36kA	4
OBMA2400LTA4P400TR	BMA2 400L TA	400	320 - 400	36/36kA	4
OBMA2630LTA4P500TR	BMA2 630L TA	500	400 - 500	36/36kA	4
OBMA2630LTA4P630TR	BMA2 630L TA	630	504 - 630	36/36kA	4

OBMA2125HTA4P80TR	BMA2 125H TA	80	64 - 80	50/50kA	4
OBMA2125HTA4P100TR	BMA2 125H TA	100	80 - 100	50/50kA	4
OBMA2125HTA4P125TR	BMA2 125H TA	125	100 - 125	50/50kA	4
OBMA2160HTA4P140TR	BMA2 160H TA	140	112 - 140	50/50kA	4
OBMA2160HTA4P160TR	BMA2 160H TA	160	128 - 160	50/50kA	4
OBMA2250HTA4P180TR	BMA2 250H TA	180	144 - 180	50/50kA	4
OBMA2250HTA4P200TR	BMA2 250H TA	200	160 - 200	50/50kA	4
OBMA2250HTA4P225TR	BMA2 250H TA	225	180 - 225	50/50kA	4
OBMA2250HTA4P250TR	BMA2 250H TA	250	200 - 250	50/50kA	4
OBMA2400HTA4P300TR	BMA2 400H TA	300	240 - 300	50/50kA	4
OBMA2400HTA4P320TR	BMA2 400H TA	320	256 - 320	50/50kA	4
OBMA2400HTA4P350TR	BMA2 400H TA	350	280 - 350	50/50kA	4
OBMA2400HTA4P400TR	BMA2 400H TA	400	320 - 400	50/50kA	4
OBMA2630HTA4P500TR	BMA2 630H TA	500	400 - 500	50/50kA	4
OBMA2630HTA4P630TR	BMA2 630H TA	630	504 - 630	50/50kA	4

OBMA2125H2TA4P80TR	BMA2 125H2 TA	80	64 - 80	70/50kA	4
OBMA2125H2TA4P100TR	BMA2 125H2 TA	100	80 - 100	70/50kA	4
OBMA2125H2TA4P125TR	BMA2 125H2 TA	125	100 - 125	70/50kA	4
OBMA2160H2TA4P140TR	BMA2 160H2 TA	140	112 - 140	70/50kA	4
OBMA2160H2TA4P160TR	BMA2 160H2 TA	160	128 - 160	70/50kA	4
OBMA2250H2TA4P180TR	BMA2 250H2 TA	180	144 - 180	70/50kA	4
OBMA2250H2TA4P200TR	BMA2 250H2 TA	200	160 - 200	70/50kA	4
OBMA2250H2TA4P225TR	BMA2 250H2 TA	225	180 - 225	70/50kA	4
OBMA2250H2TA4P250TR	BMA2 250H2 TA	250	200 - 250	70/50kA	4
OBMA2400H2TA4P300TR	BMA2 400H2 TA	300	240 - 300	70/50kA	4
OBMA2400H2TA4P320TR	BMA2 400H2 TA	320	256 - 320	70/50kA	4
OBMA2400H2TA4P350TR	BMA2 400H2 TA	350	280 - 350	70/50kA	4
OBMA2400H2TA4P400TR	BMA2 400H2 TA	400	320 - 400	70/50kA	4
OBMA2630H2TA4P500TR	BMA2 630H2 TA	500	400 - 500	70/50kA	4
OBMA2630H2TA4P630TR	BMA2 630H2 TA	630	504 - 630	70/50kA	4
